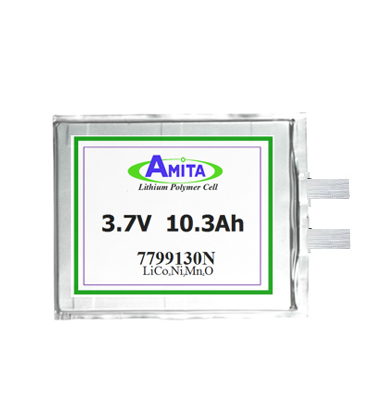

7799130N



10.3 Ah/LiCoxNiyMnzO


    01
    Model No.
    7799130N
    02
    Positive Material
    LiCoxNiyMnzO
    03
    Typical Capacity
    10.3 Ah
    04
    Cycle Life
    > 2000
    05
    Voltage
    Average
    3.7 V
    Max.
    4.2 V
    Min.
    2.8 V
    06
    Dimension
    Thickness/Height
    8.00~8.40mm
    Width
    98.0 mm
    Length
    130.0 mm
    07
    Weight
    < 218 g
    08
    Initial Internal Resistance
    < 4 mΩ
    09
    Energy/Rated Capacity
    39.4 Wh
    10
    Energy Density
    by Weight
    181 Wh/kg
    by Volume
    388 Wh/L
    11
    Charge
    Max.C-rate
    1C
    12
    Discharge
    Max. Continuous C-rate
    3C
    Transient Peak Current
    8C
    13
    Operating Temperature
    Charging
    0~45℃
    Discharging
    -20~55℃
    14
    Storage Temperature
    -20~40℃
    15
    Humidity Range
    < RH 45~85%
