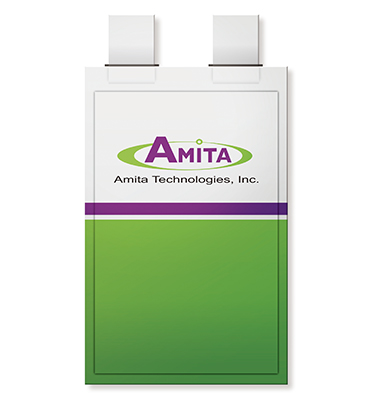

120155250L(AL40)



40 Ah/LiCoxNiyMnzO/Li4Ti5O12


01
Model No.
120155250L-AL40
02
Positive Material
LiCoxNiyMnzO/ Li4Ti5O12
03
Typical Capacity
40Ah (38 min.)
04
Cycle Life
1C-1C RT > 10000, SOH at 80%
05
Voltage
Nominal
2.2 V
Max.
2.70V
Min.
1.60V
06
Dimension
Thickness
12.0 ± 0.5mm
Width
154.5 ± 2 mm
Length
250 ± 1 mm
07
Weight
< 980 g
08
Initial Internal Resistance
< 1.2 mΩ , 25℃
09
Energy/Rated Capacity
88 Wh
10
Energy Density
by Weight
90 Wh/kg
by Volume
190Wh/L
11
Charge
Max.C-rate
3C
12
Discharge
Max. Continuous C-rate
1C
13
Operating Temperature
Charging
0~50℃ *Operating Temperature will different because of different using condition*
Discharging
-10~50℃
14
Storage Temperature
-20~40℃ Within 1 Year
15
Humidity Range
RH 45~85% Within 1 Year

...
