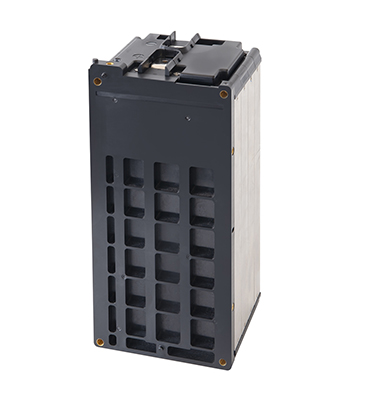

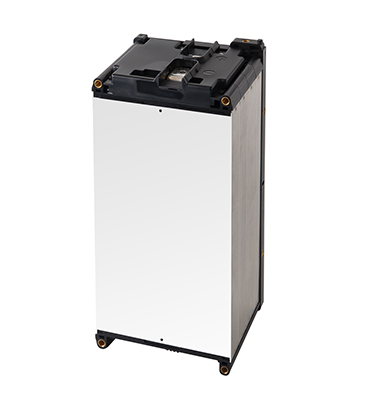

EA-001
(1) Module products
(2) For 24V, 48V systems
(3) High Charge/discharge current
(4) Current interruption device as mechanical protection.
•Own Intelligent Property
(5) Battery management unit
•Over charge signal
•Over charge release signal
•Over Temp at charge signal
•Over Temp release at charge signal
•Over Temp at discharge signal
•Over Temp release at charge signal
(6) Ideal product for EV application
01
Model No.
EA-001
02
Component Cell
120155250N(NH02)
03
Connection Structure
7S1P
04
Positive Material
LiCoxNiyMnzO
05
Typical Capacity
43Ah
06
Cycle Life
4C1C >3000
07
Voltage
Average
25.2V
Max.
29.4V
Min.
16.8V
08
Weight
8.05 Kg
09
Energy/Rated Capacity
1.08 KWh
10
Charge
Max.Current
176A
11
Discharge
Max. Continuous Current
176A
Transient Peak Current
352A
12
Operating Temperature
Charging
0~55℃
Discharging
0~55℃
13
Storage Temperature
0~45℃
14
Humidity Range
< RH 45~85%
15
Current Interruption Device
no
16
Battery Pack Status
Core Pack ready
...
...
